Fermentation Systems

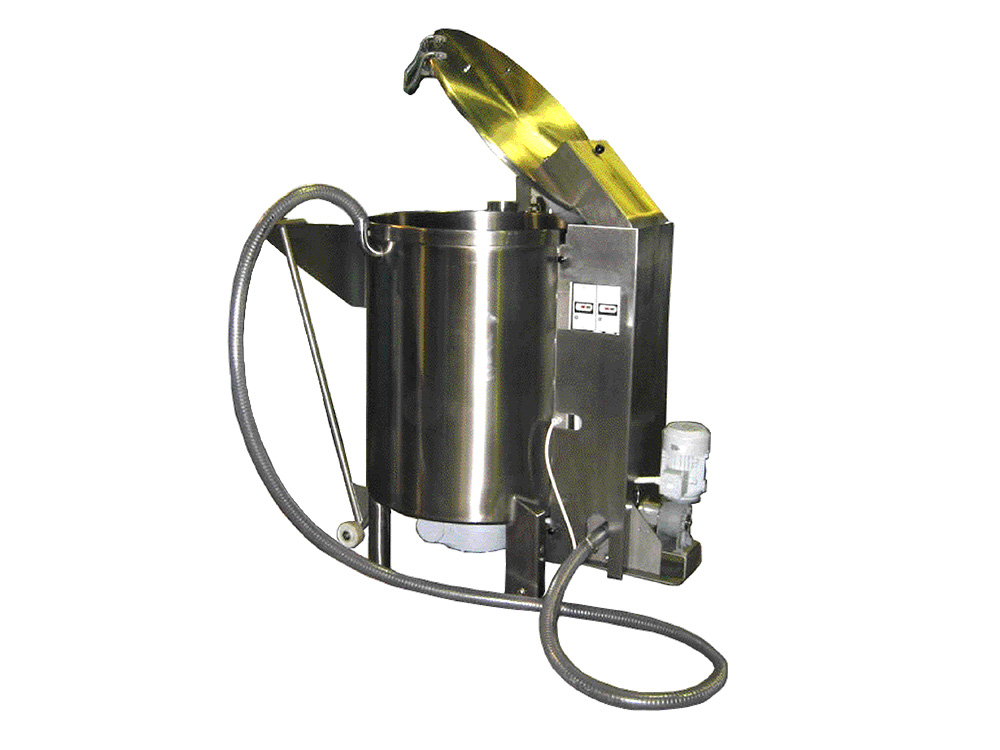

Topos a.s. manufactures systems for fermentation and sourdough production, including all-stainless steel sourdough makers (Fermenters) and tanks for fermentation processes and storage in many types, designs, and capacities.

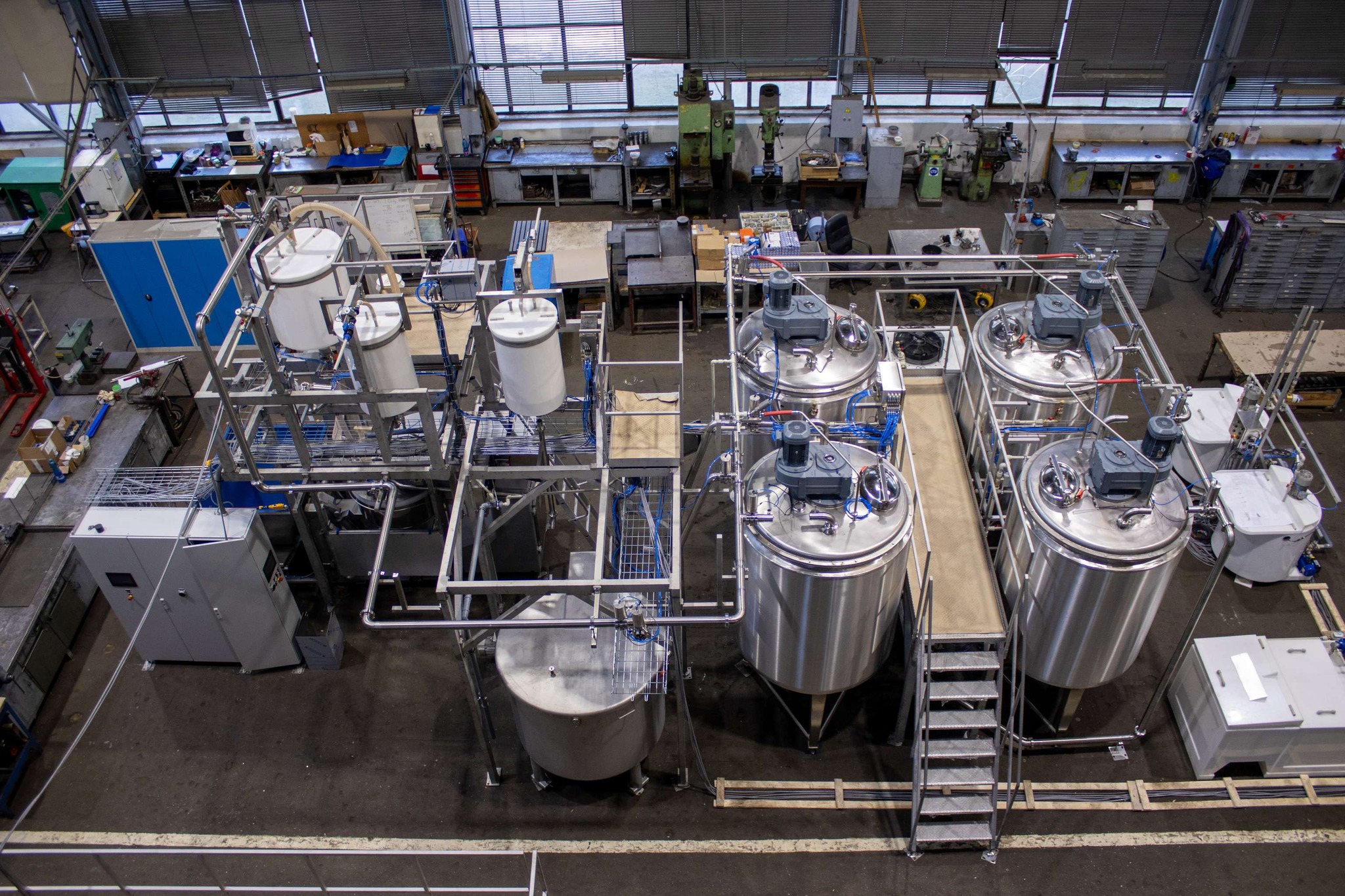

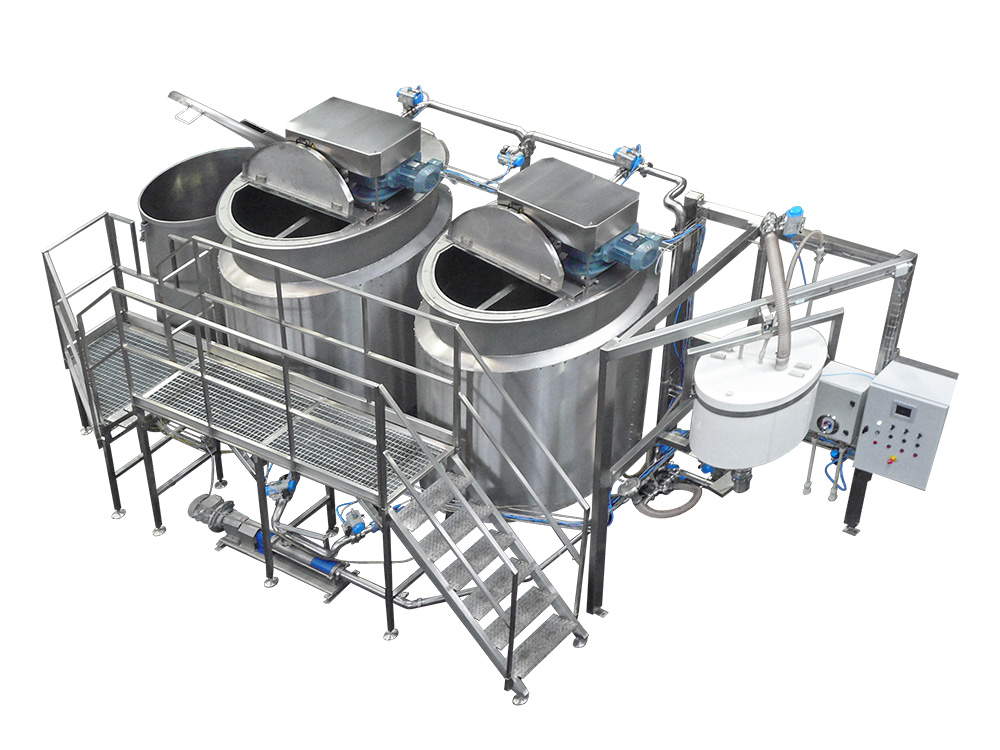

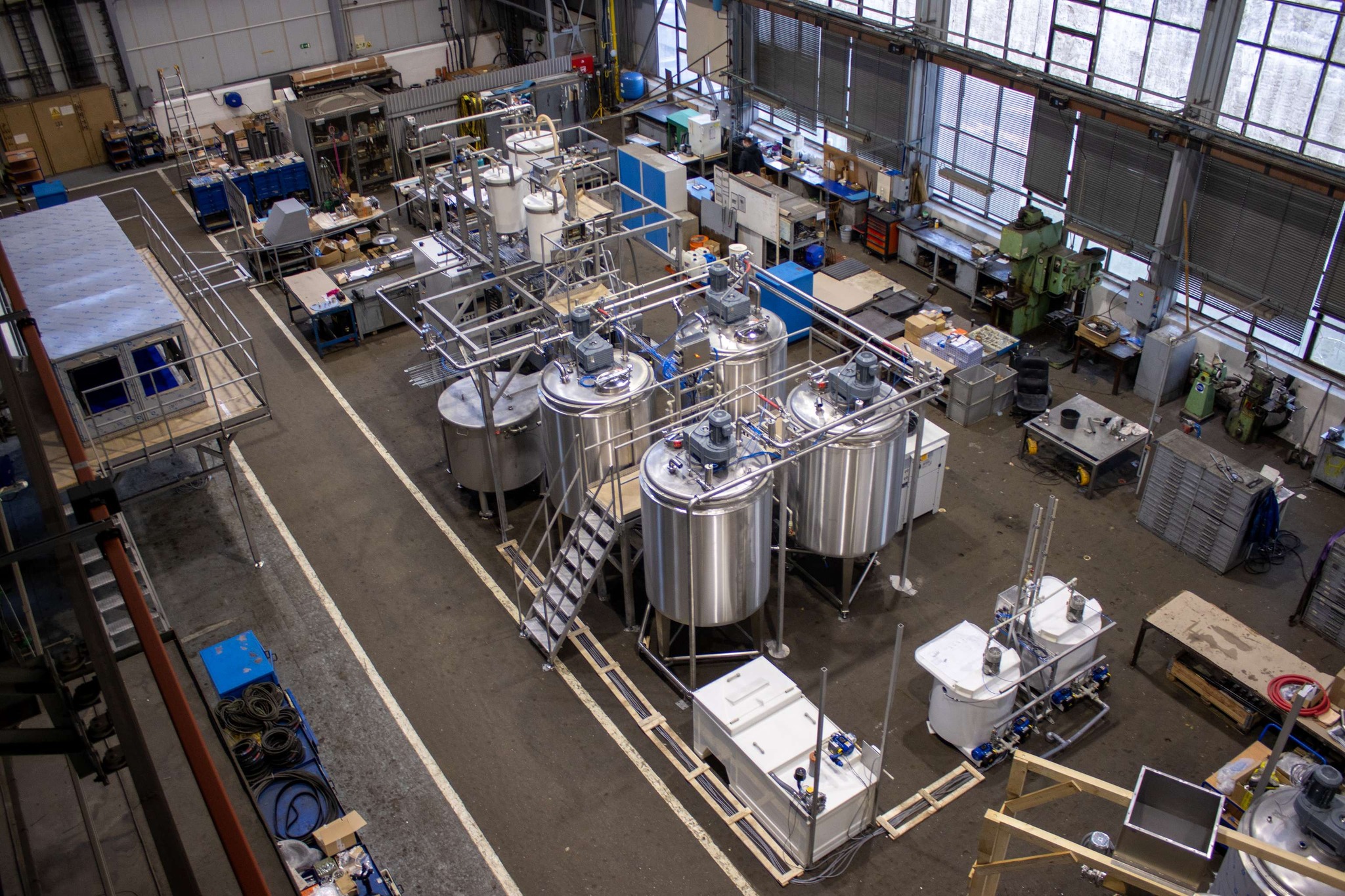

The fermentation system consists of single or dual-jacketed vessels for cooling or heating, equipped with an electric gearmotor agitator drive located above or below, to suit the customer’s preference.
The mixing system may vary depending on the specific type and recipe of the ferment (sourdough). The most common solution is a system with intensive mixing in the sourdough maker (Fermenter) and only slow, gentle mixing with scraping of the side walls to separate CO₂ in the fermentation tanks.
The vessels stand on height-adjustable levelling feet and are enclosed with a cover (to be optionally hermetically sealed, on request).

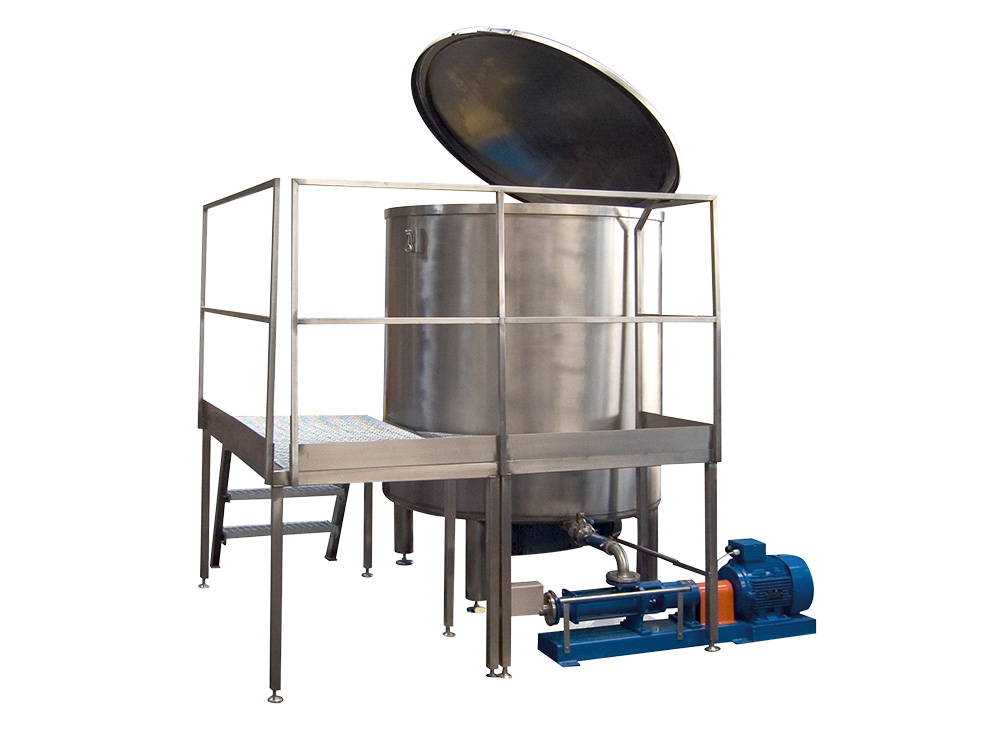

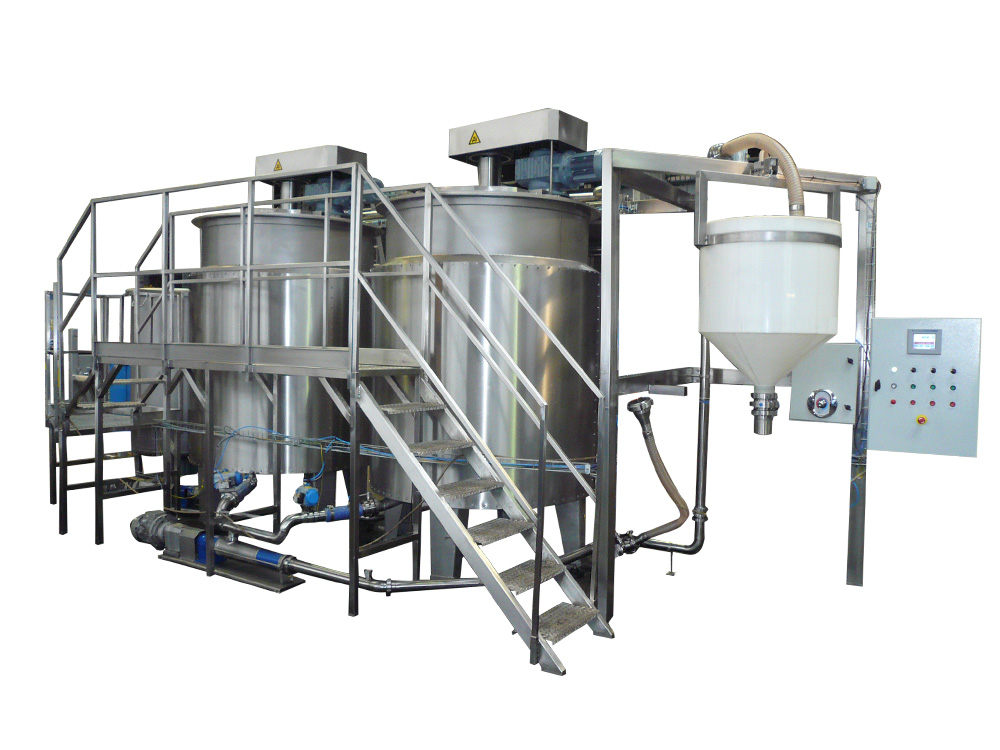

Depending on the capacity and overall height, access to the top of each vessel is provided by a S/S platform with sanitary stairs and safety railing.
The unit can be equipped with either a simple START/STOP switch or fully programmable digital controls. The entire system, including the sourdough maker (Fermenter) and any number of fermentation tanks, can also be fully integrated and controlled within an automatic dough production line.
The vessel, agitator assembly, and frame structure are made entirely of high quality stainless-steel.

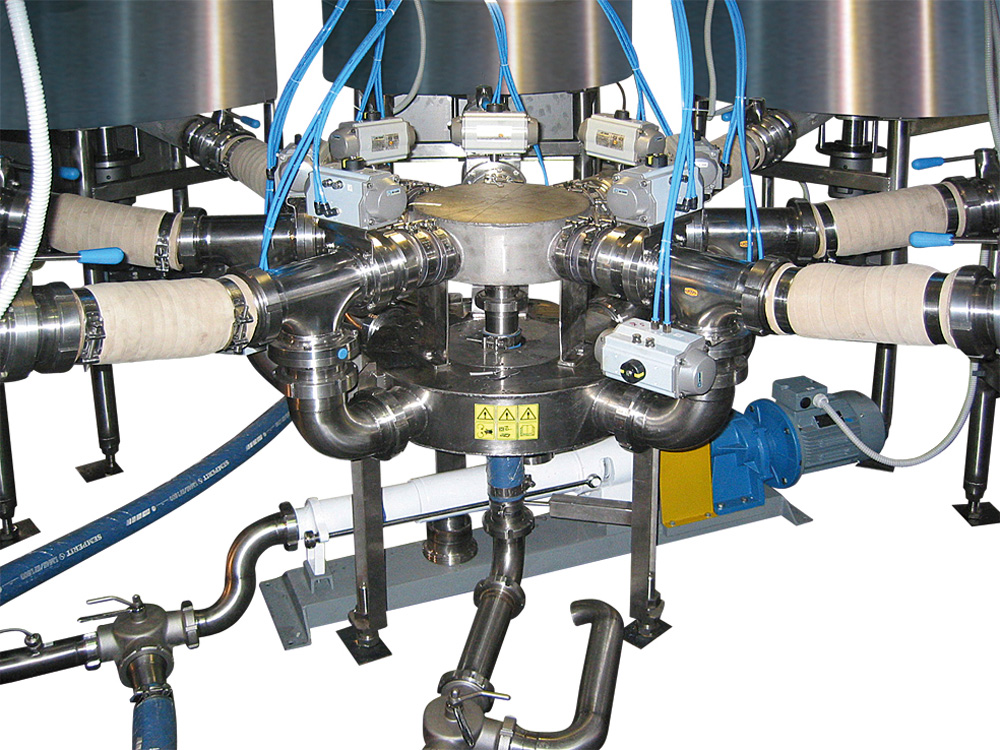

The fermented product is transported from the vessel by a stainless-steel screw pump. The vessels and distribution pipes can be equipped with an automatic cleaning system as well.
The basic capacities and dimensions of the sourdough makers (Fermenters) are as follows:

	T-500	T-1000	T-1500	T-2000
Overall height	1 400 mm	2 530 mm	2 617 mm	2 920 mm
Vessel diameter	1 000 mm	1 000 mm	1 430 mm	1 440 mm
Internal vessel height	970 mm	1 500 mm	1 200 mm	1 500 mm
Max. filling height	825 mm	1 300 mm	945 mm	1 300 mm
Total volume	760 l	1 180 l	1 750 l	2 260 l
Working volume	500 l	1 000 l	1 500 l	1 900 l
Leaven capacity	350 kg	700 kg	1 050 kg	1 400 kg
Total power input	1,87 kW	3,7 kW	4,4 kW	4,4 kW
Weight	385 kg	500 kg	680 kg	780 kg

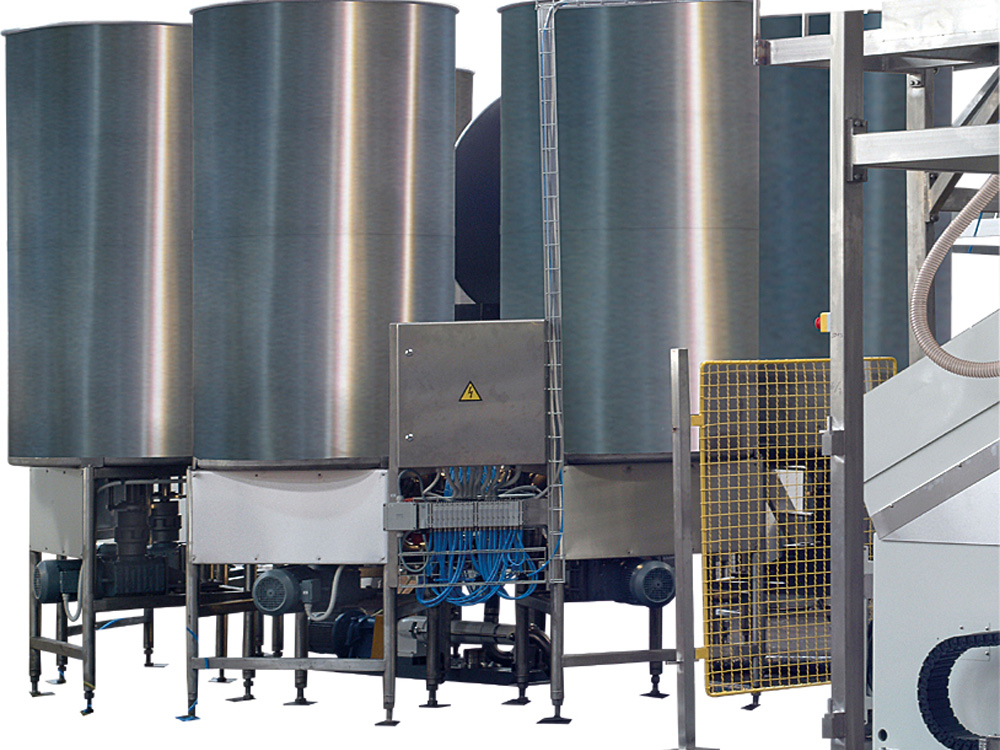

Topos Fermentor System for Maturation of Sourdough

Share

Topos a.s. manufactures systems for fermentation and sourdough production, including all-stainless steel sourdough makers (Fermenters) and tanks for fermentation processes and storage in many types, designs, and capacities.
The fermentation system consists of single or dual-jacketed vessels for cooling or heating, equipped with an electric gearmotor agitator drive located above or below, to suit the customer’s preference.
The mixing system may vary depending on the specific type and recipe of the ferment (sourdough). The most common solution is a system with intensive mixing in the sourdough maker (Fermenter) and only slow, gentle mixing with scraping of the side walls to separate CO₂ in the fermentation tanks.
The vessels stand on height-adjustable levelling feet and are enclosed with a cover (to be optionally hermetically sealed, on request).
Depending on the capacity and overall height, access to the top of each vessel is provided by a S/S platform with sanitary stairs and safety railing.
The unit can be equipped with either a simple START/STOP switch or fully programmable digital controls. The entire system, including the sourdough maker (Fermenter) and any number of fermentation tanks, can also be fully integrated and controlled within an automatic dough production line.
The vessel, agitator assembly, and frame structure are made entirely of high quality stainless-steel.
The fermented product is transported from the vessel by a stainless-steel screw pump. The vessels and distribution pipes can be equipped with an automatic cleaning system as well.
The basic capacities and dimensions of the sourdough makers (Fermenters) are as follows:

	T-500	T-1000	T-1500	T-2000
Overall height	1 400 mm	2 530 mm	2 617 mm	2 920 mm
Vessel diameter	1 000 mm	1 000 mm	1 430 mm	1 440 mm
Internal vessel height	970 mm	1 500 mm	1 200 mm	1 500 mm
Max. filling height	825 mm	1 300 mm	945 mm	1 300 mm
Total volume	760 l	1 180 l	1 750 l	2 260 l
Working volume	500 l	1 000 l	1 500 l	1 900 l
Leaven capacity	350 kg	700 kg	1 050 kg	1 400 kg
Total power input	1,87 kW	3,7 kW	4,4 kW	4,4 kW
Weight	385 kg	500 kg	680 kg	780 kg

Request a Quote Download Brochure
